Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System
Introduction:

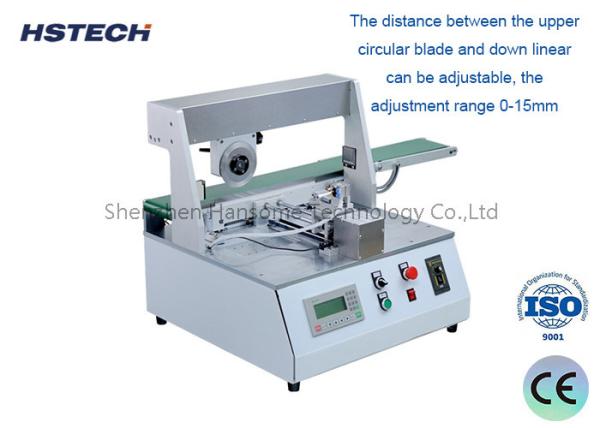

This automated PCB separation system incorporates a seamless automatic feeding mechanism. It employs a novel design that combines an upper rotating circular blade with a lower stationary linear blade. Throughout the depaneling process, the PCB remains firmly positioned as the circular blade spins, efficiently executing the separation task.
Advantages:
The conventional PCB separator, which relies on manual operation, is not only inefficient but also labor-intensive. However, the newly designed automatic PCB separator revolutionizes the process. Its microcomputer-controlled automatic feeding system is capable of accommodating a wide range of board sizes and seamlessly integrates with loaders. This innovation minimizes labor requirements, boosts productivity, automates workflow processes, and maximizes overall output.
The main features are as follows:
1.Autonomous PCB Separation: The machine autonomously manages the entire PCB separation process, from input to cutting to output, ensuring seamless and efficient automation.
2.High-Speed Cutting Performance: Equipped with high-speed CNC tools, it rapidly separates boards, achieving multiple cuts per minute to significantly enhance productivity.
3.Precision Cutting Accuracy: Utilizing high-precision sensors and servo motor control, it guarantees board separation within ±0.05mm, ensuring exceptional cutting precision.
4.Automated Material Handling: The integrated silo and conveyor belt system automate the feeding and unloading of PCB boards, optimizing overall process efficiency and reducing manual intervention.
5.Intelligent Control System: Based on PLC technology, the system offers customizable separation schemes for various board sizes and includes fault self-diagnosis for proactive maintenance and reduced downtime.
6.User-Friendly Interface: The intuitive and straightforward interface simplifies operation, while the compact and modular structure facilitates easy maintenance and extends the equipment's lifespan.
Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.
Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.
High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.
User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.
Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.
Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
Specification:
| Product name | Auto feeding blade moving PCB separator |
| Model | HS-208 |
| Part-up height | 15mm |
| Air supply | 0.6-0.8Mpa |
| Max board length | 360mm |
| Voltage | AC220V/110V,50/60Hz |
| Separating width | 50~360mm |
| Blade material | SKD61 high speed steel |
| Separating speed | Adjustsble |
| Suitable board | Aluminum, all kinds of fiber-glass board, FR4 |
| Machine size | 1000*850*1130mm |
| Weight | 100kg |
